Confetti102 Chua Diode
That's a Chua's Diode board for the analog computer Confetti.
With the jumper set one can connect the output to the common ground, if no jumper is used one can use the output connector instead.
In combination with the Confetti101 Gyrator one can build a Chua's Oscillator.
Paper PCB
Confetti312 Hexaconnector II

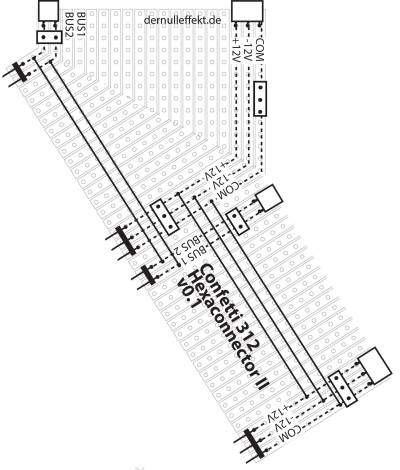

That's a connection board for the analog computer Confetti. If one has connected some Confetti modules with the Confetti310 Hexacorner to a hexagon, for example for a ring of Confetti Neurons, that board could be used for an extra connection outside the circle.
Preparing the Stripe Board

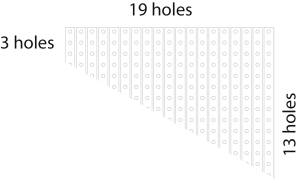

For building the Hexaconnector board one needs to cut two copper stripe proto boards in the following way:
The two copper stripes for the two buses and the three stripes for power on the back of the board should be soldered together.
Paper PCB
License
The Confetti102 Chua Diode was designed by Wolfgang Spahn 2015-19.
It is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
