Confetti501 Confetti Neuron

Confetti Neurons are special modules to implement an analog artificial neural network into the multi-connect system of the Analog Computer Confetti.

They are the successor of the Pop Neuron.


Explaining the Circuit

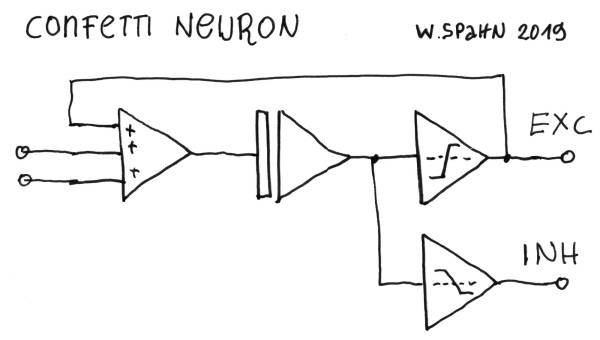

The basic idea for the circuit of the Confetti Neuron was to build a circuit out of four different Confetti modules: a summing amplifier, an integrator and a comparator, depending on the condition of the neuron, a non inverting comparator for the excitatory and an inverting comparator for the inhibitory.


These four models combined behaved exactly like Shun-Ichi Amari had described*. They would fire or not fire (outputs +12V or -12V) when a certain input level (action potential) was reached.

The option to change the integrator circuit on the board by plugging in different capacitors (values from 100pF up to 1000µF) and the option to connect at the input as many different inputs sources as one wants makes the Confetti Neuron more flexible to use in all kind of applications.
Thus one can use the boards in combination with the plug-in slots of the Confetti Neuron module to create an analog neuron. In adding resistors and capacitors to it one can build an excitatory (EXC) or an inhibitory (INH) neuron out of a Confetti Neuron 501 module, depending on the jumper setting.

*Dynamics of Pattern Formation in Lateral-Inhibition Type Neural Fields by Shun-Ichi Amari


Neural Sound Synthesis

One can use these neurons to generate pattern and structures for all kind of sequencers and also for synthesize sound for musical instruments similar like the one David Tutor used for his Neural Synthesis Nos. 6-9 in 1993. A description of his work by Forrest Warthman and Mimi Johnson is on the artist web-side: The Neural Network Synthesizer. His neural synthesizer was based on a RC-circuit in combination of the 80170NX Electrically Trainable Analog Neural Network chip by Intel.

The Confetti Oscillator

To patch two neurons for an oscillator one has to connect the output of the first neuron to the input of the second neuron and vice versa. Depending on the frequency various resisters could be used. The value should be more than 5kOhm and could be up to 12MOhm. The capacitor on the board should have a value from 100pF to 1µF.

One can use for example for a good sounding oscillator a resistor value of 100kOhm and a capacitor value of 3.9nF.
To change the frequency one can use a potentiometer instead of the two resistors. For a good result one should use a 2MOhm stereo potentiometer.



Schematic



Patching

The core ides of the analog computer Confetti was to provide a highly flexible system for using and combining all individual boards of this system. One can patch all modules via a build in bus or in using the patching wires in combination with the sockets on the boards. With these ideas also realized in the Confetti Neuron, one can easily use two different neurons to build an oscillator, or with some more neurons one can build a whole analog artificial network.

For patching some extra components like for example potentiometer or diodes one can use the Confetti302 Breadboard to do so.


Patching a Ring of Oscillation


Synchronization of two Confetti Oscillators


Paper PCB

Parts

  • Resistors:
  • 4x 1 kOhm
  • 2x 330 kOhm
  • 1x 10 MOhm
  • Capacitors:
  • 1x 100pF - 1000µF
  • Diodes:
  • 1x LED
  • Semiconductors
  • 1x TL074 OpAmp
  • Mechanical:
  • 1x IC socket, 14pins
  • 1x 3 pin strip
  • 1x jumpers
  • 3x 2 pin header, female
  • 2x 4 pin header, female
  • 1x 2 pin socket header, female
  • 2x pin header, female 90° 1×3, 1×2
  • 2x pin header, male 90° 1×3, 1×2
  • Potentiometers:
  • 1x 100 kOhm

Acknowledge

These oscillator and network behave similar to the one described in Dynamics of Pattern Formation in Lateral-Inhibition Type Neural Fields by Shun-Ichi Amari. The implementation of the analog neuron was described in Implementation of Artificial Neural Oscillators in 2009 by Pavlo V. Tymoshchuk, Yuriy I. Paterega.
Like already mentioned one importent origin of the Pop Neuron is the bicore circuit of the BEAM.
A digital implementation on syncing and desyncing processes of two mutually coupled systems one can find on Netze/Networks Neural Oscillators by Lab3 - Laboratory for Experimental Computer Science at the Academy of Media Arts Cologne.
An other example of an electric implementation of an analog neuron for controlling robots one can find in Neurodynamische Module zur Bewegungssteuerung autonomer mobiler Roboter by Manfred Hild.
