Confetti704 Non Inverting Summer

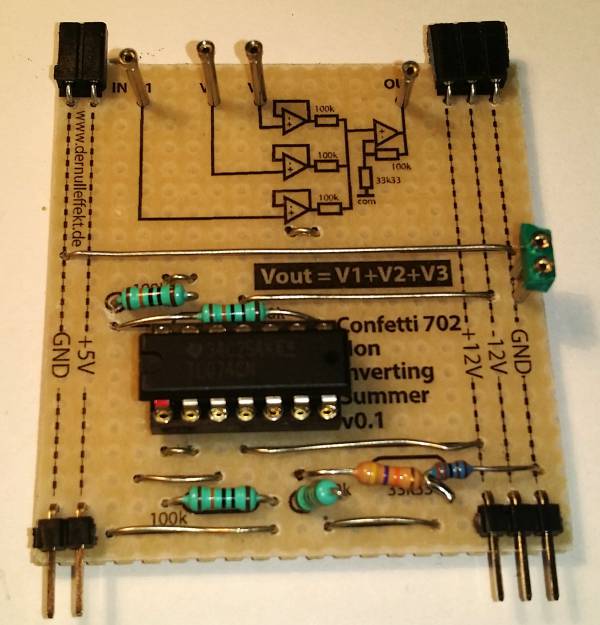

The non inverting summer board for the Analog Computer Confetti. A good description of the basic functionality of the summer one can find here: The Summing Amplifier.
