Programming Board

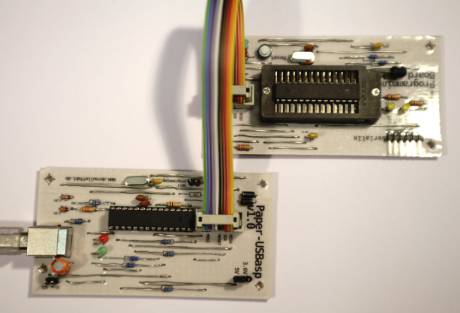

That board can be used together with an AVR Programmer, or the Paper USBasp for burning bootloader or programming Atmega8, 126 or 328 chips.
Front:
Back:
Paper-PCB
Parts
- IC socket, 28 pin
- 4 loe current LEDs red, green, yellow
- 2 capacitors 100nF
- 2 capacitors 22pF
- resistors: 4x 2kOhm, 2x 1kOhm, 1x 10kOhm
- 10 pin socket
- 6 pins
License
The Programming Board was designed by Wolfgang Spahn 2013.
It is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
