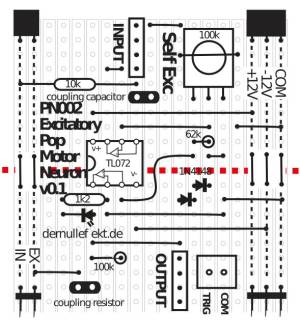

PN002 Excitatory Pop Neuron
The excitatory Pop Neuron. One has to set the input capacitor and the bus output resistors.
The motor version comes with a connector for small gear motors (less than 20mA)and two diodes in row.
Schematic
